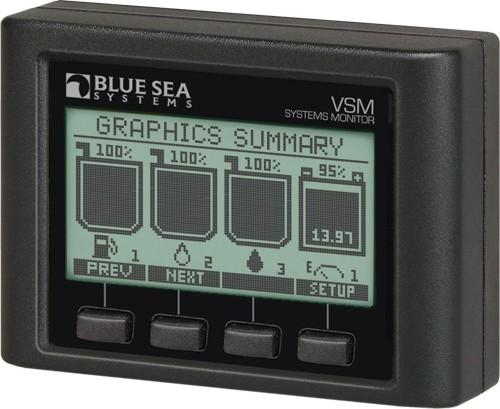

Blue Sea Blue Sea Vessel system monitor VSM 422
Tillverkare: Blue Sea Systems
Produktkod: 134-1800
Lägsta pris under 30 dagar före prissänkningen
9070,00 kr
Nuvarande pris
8435,10 kr
Skriv ut produktinformation
A4-produktsida
Snabb leverans!
Fri frakt på beställningar över 2200 kr!
30 dagars räntefri betalningstid!
14 dagars returrätt!
Payment methods
![klarna]()
![787bc5915248f1e37231a54d3f48d3a4]()
![4c27495f0306f067d90bd03765e78911]()
![a6de070ca3a94bc1754a7ab18aa2767f]()
![7d9bcb59e79d46966e40a87ecf20a58d]()
![d724e9d0bd837dc5b70d8988396bc150]()
![a13ca564c2b6abac7ed0ddad9d0dda52]()
![e55f8fc5021e7f8c9a293993b0f87f09]()
![c03b283be0c8f444d10a55597531fcb8]()
![0a09613a25eaa779c41cfdcbdf372f02]()
![32e558faf0155f3d25fbdb771f1c7bd4]()
![752791b448ddea4d54b0f555c4c9fea3]()
![64e6310b456c5391781e428772f801e5]()
![1b84218ebaaa412599f11d4d07c4e26f]()
![bb3327e483aa58b1f16e25ea38875b33]()
Three intuitive display modes
Flexible case design offers three mounting options
Fully programmable legends and adjustable alarm functions can be customized to fit every boat
Included in retail packaginghead unit, surface mount bezel, surface mount gasket, DC Current Shunt 8255, AC Current Transformer 8256, Battery Temperature Sensor 1820, connectors, and mounting screws
Monitors DC systemsvoltage, amperage, battery state of charge - amp hours remaining, time remaining, % charge, battery temperature (alarms for all values)
Monitors AC systemsvoltage, amperage, watts, frequency (alarms for voltage, amperage, and frequency)
Monitors tank levelsfuel, water, waste, (alarms for high level waste, low level fuel, and water)
Monitors bilgeactive, cycle count, and duration (alarms for cycles and duration)
Nominal Voltage:\t
230V AC @ 50Hz, Typical of Europe
120V AC @ 60Hz, North America
12V DC
24V DC
Operating Voltage:
0-300V AC
8.5-33.0V DC
Current Accuracy:
± 2.0% AC (RMS)
± 1.0% DC
Current Range:
0-150A AC
0-500A DC
Frequency:
40-90Hz
Minimum Current Draw:
35mA @ 12V, backlight off
18.8mA @ 24V, backlight off
Voltage Accuracy:
+/- 0.5%
Weight:
4.00lb (1.81 kg)
Flexible case design offers three mounting options
Fully programmable legends and adjustable alarm functions can be customized to fit every boat
Included in retail packaginghead unit, surface mount bezel, surface mount gasket, DC Current Shunt 8255, AC Current Transformer 8256, Battery Temperature Sensor 1820, connectors, and mounting screws
Monitors DC systemsvoltage, amperage, battery state of charge - amp hours remaining, time remaining, % charge, battery temperature (alarms for all values)
Monitors AC systemsvoltage, amperage, watts, frequency (alarms for voltage, amperage, and frequency)
Monitors tank levelsfuel, water, waste, (alarms for high level waste, low level fuel, and water)
Monitors bilgeactive, cycle count, and duration (alarms for cycles and duration)
Nominal Voltage:\t
230V AC @ 50Hz, Typical of Europe
120V AC @ 60Hz, North America
12V DC
24V DC
Operating Voltage:
0-300V AC
8.5-33.0V DC
Current Accuracy:
± 2.0% AC (RMS)
± 1.0% DC
Current Range:
0-150A AC
0-500A DC
Frequency:
40-90Hz
Minimum Current Draw:
35mA @ 12V, backlight off
18.8mA @ 24V, backlight off
Voltage Accuracy:
+/- 0.5%
Weight:
4.00lb (1.81 kg)
